Node 2 Network Speeds Throttled and Reset on Reboot

#!/bin/bash

MAX_IF=4
APPLY=1
ASSUME_YES=1
FORCE=1
DETACH=1
LINK_TIMEOUT=25
LOGFILE=/var/log/nic-speed.log

# ------------------------------------------------------------------------

while [ $# -gt 0 ]; do
    case "$1" in
        "")        ;;   # User Scripts passes an empty arg; ignore it
        --apply)   APPLY=1 ;;
        -y|--yes)  ASSUME_YES=1 ;;
        --force)   FORCE=1 ;;
        --detach)  DETACH=1 ;;
        --max)     MAX_IF="$2"; shift ;;
        --timeout) LINK_TIMEOUT="$2"; shift ;;
        -h|--help) sed -n '2,20p' "$0"; exit 0 ;;
        *) echo "unknown option: $1" >&2; exit 1 ;;
    esac
    shift
done

[ -t 0 ] || ASSUME_YES=1

ETHTOOL=$(command -v ethtool || echo /usr/sbin/ethtool)
[ -x "$ETHTOOL" ] || { echo "ethtool not found" >&2; exit 1; }

# ------------------------------------------------------------------ log ----

log() {
    local msg="$*"
    printf '%s  %s\n' "$(date '+%Y-%m-%d %H:%M:%S')" "$msg"
    command -v logger >/dev/null 2>&1 && logger -t nic-speed "$msg"
}

echo "=============================================="
echo " Started Network Max Speed Set"
echo " $(date '+%Y-%m-%d %H:%M:%S')  host: $(hostname)"
echo " mode: $( [ "$APPLY" -eq 1 ] && echo APPLY || echo REPORT-ONLY )  force: $FORCE  scan: eth0-eth$MAX_IF"
echo "=============================================="
echo

# --------------------------------------------------------------- detach ----
# Re-exec detached from the controlling terminal / User Scripts window, with
# all output appended to LOGFILE. Losing the link then cannot abort the run.

if [ "$DETACH" -eq 1 ] && [ -z "$NICSPEED_CHILD" ]; then
    args=()
    [ "$APPLY"  -eq 1 ] && args+=(--apply)
    [ "$FORCE"  -eq 1 ] && args+=(--force)
    args+=(-y --max "$MAX_IF" --timeout "$LINK_TIMEOUT")
    echo "Detaching. Output goes to $LOGFILE"
    echo "Follow it with:  tail -f $LOGFILE"
    NICSPEED_CHILD=1 setsid nohup "$0" "${args[@]}" >> "$LOGFILE" 2>&1 < /dev/null &
    exit 0
fi

# ---------------------------------------------------------------- parsing ---

list_modes() {
    printf '%s\n' "$1" | awk -v want="$2:" '
        index($0, want) { insec = 1 }
        insec {
            if (!index($0, want) && index($0, ":")) { insec = 0; next }
            n = split($0, tok, /[ \t]+/)
            for (i = 1; i <= n; i++) if (tok[i] ~ /^[0-9]+base/) print tok[i]
        }'
}

max_of() { awk '{ s = $0; sub(/base.*/, "", s); if (s + 0 > m) m = s + 0 } END { print m + 0 }'; }

fmt() {
    awk -v m="$1" 'BEGIN {
        if (m + 0 <= 0) { print "-"; exit }
        if (m + 0 < 1000) { printf "%dM\n", m; exit }
        g = m / 1000
        if (g == int(g)) printf "%dG\n", g; else printf "%.1fG\n", g
    }'
}

# Bit positions from the kernel ETHTOOL_LINK_MODE_* enum.
mode_bit() {
    case "$1" in
        10baseT/Half) echo 0 ;;      10baseT/Full) echo 1 ;;
        100baseT/Half) echo 2 ;;     100baseT/Full) echo 3 ;;
        1000baseT/Half) echo 4 ;;    1000baseT/Full) echo 5 ;;
        10000baseT/Full) echo 12 ;;  2500baseX/Full) echo 15 ;;
        1000baseKX/Full) echo 17 ;;  10000baseKX4/Full) echo 18 ;;
        10000baseKR/Full) echo 19 ;; 25000baseCR/Full) echo 31 ;;
        25000baseKR/Full) echo 32 ;; 25000baseSR/Full) echo 33 ;;
        1000baseX/Full) echo 41 ;;   10000baseCR/Full) echo 42 ;;
        10000baseSR/Full) echo 43 ;; 10000baseLR/Full) echo 44 ;;
        10000baseLRM/Full) echo 45 ;; 10000baseER/Full) echo 46 ;;
        2500baseT/Full) echo 47 ;;   5000baseT/Full) echo 48 ;;
        *) echo -1 ;;
    esac
}

mask_from() {  # $1 = ethtool output, $2 = label -> hex mask on stdout
    local mask=0 m b
    while read -r m; do
        [ -z "$m" ] && continue
        b=$(mode_bit "$m")
        [ "$b" -ge 0 ] && [ "$b" -lt 63 ] && mask=$(( mask | (1 << b) ))
    done < <(list_modes "$1" "$2")
    printf '0x%x' "$mask"
}

# ------------------------------------------------------------ environment ---

SESSION_IF=""
if [ -n "$SSH_CONNECTION" ]; then
    peer=$(echo "$SSH_CONNECTION" | awk '{print $1}')
    SESSION_IF=$(ip route get "$peer" 2>/dev/null | awk '{for(i=1;i<=NF;i++) if($i=="dev"){print $(i+1); exit}}')
fi
DEFAULT_IF=$(ip route show default 2>/dev/null | awk '{for(i=1;i<=NF;i++) if($i=="dev"){print $(i+1); exit}}')

resolve_master() {
    local d="$1" m
    while [ -L "/sys/class/net/$d/master" ]; do
        m=$(basename "$(readlink -f "/sys/class/net/$d/master")")
        [ "$m" = "$d" ] && break
        d="$m"
    done
    echo "$d"
}

is_critical() {
    local up; up=$(resolve_master "$1")
    if [ -n "$SESSION_IF" ] && { [ "$1" = "$SESSION_IF" ] || [ "$up" = "$SESSION_IF" ]; }; then return 0; fi
    if [ -n "$DEFAULT_IF" ] && { [ "$1" = "$DEFAULT_IF" ] || [ "$up" = "$DEFAULT_IF" ]; }; then return 0; fi
    return 1
}

wait_link() {  # $1 = dev, $2 = seconds -> echoes negotiated Mb/s, "" if down
    local dev="$1" secs="$2" i st spd
    for (( i = 0; i < secs; i++ )); do
        sleep 1
        st=$("$ETHTOOL" "$dev" 2>/dev/null)
        if printf '%s\n' "$st" | grep -q "Link detected: yes"; then
            spd=$(printf '%s\n' "$st" | awk -F': ' '/[[:space:]]Speed:/ {print $2; exit}')
            spd=${spd%Mb/s}
            case "$spd" in ''|*[!0-9]*) ;; *) echo "$spd"; return 0 ;; esac
        fi
    done
    echo ""
    return 1
}

# ---------------------------------------------------------------- report ----

TODO_IF=(); TODO_MASK=(); TODO_OLD=(); TODO_FROM=(); TODO_TO=(); TODO_CRIT=(); TODO_ADD=()
CHANGED=(); UNCHANGED=(); FAILED=()

printf "%-7s %-9s %-6s %-8s %-10s %-9s %-8s %s\n" \
    IFACE DRIVER LINK CURRENT ADVERTISED SUPPORTED PARTNER NOTE
printf -- "--------------------------------------------------------------------------------\n"

best=0
for n in $(seq 0 "$MAX_IF"); do
    dev="eth$n"
    [ -e "/sys/class/net/$dev" ] || continue
    out=$("$ETHTOOL" "$dev" 2>/dev/null) || continue

    sup=$(list_modes "$out" "Supported link modes" | max_of)
    adv=$(list_modes "$out" "Advertised link modes" | max_of)
    par=$(list_modes "$out" "Link partner advertised link modes" | max_of)

    link=$(printf '%s\n' "$out" | awk -F': ' '/Link detected:/ {print $2; exit}')
    autoneg=$(printf '%s\n' "$out" | awk -F': ' '/Supports auto-negotiation:/ {print $2; exit}')
    cur=$(printf '%s\n' "$out" | awk -F': ' '/[[:space:]]Speed:/ {print $2; exit}'); cur=${cur%Mb/s}
    case "$cur" in ''|*[!0-9]*) cur_h="-" ;; *) cur_h=$(fmt "$cur") ;; esac

    drv="?"
    [ -L "/sys/class/net/$dev/device/driver" ] && \
        drv=$(basename "$(readlink -f "/sys/class/net/$dev/device/driver")")

    note=""
    if [ "$sup" -gt "$adv" ]; then
        if [ "$autoneg" != "Yes" ]; then
            note="capped, but no autoneg"
        else
            newmask=$(mask_from "$out" "Supported link modes")
            oldmask=$(mask_from "$out" "Advertised link modes")
            crit=0; is_critical "$dev" && crit=1

            if [ "$newmask" = "0x0" ]; then
                note="capped, no mappable modes"
            elif [ "$crit" -eq 1 ] && [ "$FORCE" -eq 0 ]; then
                note="capped -> SKIPPED (carries session; use --force --detach)"
            else
                # Exactly which link modes this run will add.
                addmodes=$(comm -13 \
                    <(list_modes "$out" "Advertised link modes" | sort -u) \
                    <(list_modes "$out" "Supported link modes"  | sort -u) \
                    | tr '\n' ' ')
                addmodes=${addmodes% }

                note="capped -> will raise to $(fmt "$sup")"
                [ "$crit" -eq 1 ] && note="$note (SESSION NIC, watchdogged)"
                TODO_IF+=("$dev");     TODO_MASK+=("$newmask")
                TODO_OLD+=("$oldmask"); TODO_FROM+=("$adv")
                TODO_TO+=("$sup");     TODO_CRIT+=("$crit")
                TODO_ADD+=("${addmodes:-none}")
            fi
            if [ "$par" -gt 0 ] && [ "$par" -lt "$sup" ]; then
                note="$note [partner tops out at $(fmt "$par")]"
            fi
        fi
    fi

    printf "%-7s %-9s %-6s %-8s %-10s %-9s %-8s %s\n" \
        "$dev" "$drv" "${link:-?}" "$cur_h" "$(fmt "$adv")" "$(fmt "$sup")" "$(fmt "$par")" "$note"

    [ "$sup" -gt "$best" ] && best=$sup
done

echo
echo "Fastest NIC in this box: $(fmt "$best")"

# ----------------------------------------------------------------- apply ----

if [ "$APPLY" -eq 0 ]; then
    if [ "${#TODO_IF[@]}" -gt 0 ]; then
        echo
        echo "Report-only mode - NO CHANGES APPLIED. Would change:"
        for i in "${!TODO_IF[@]}"; do
            echo "  ${TODO_IF[$i]}: ceiling $(fmt "${TODO_FROM[$i]}") -> $(fmt "${TODO_TO[$i]}"), adding ${TODO_ADD[$i]}"
            echo "    ethtool -s ${TODO_IF[$i]} autoneg on advertise ${TODO_MASK[$i]}"
        done
    fi
    exit 0
fi

if [ "${#TODO_IF[@]}" -eq 0 ]; then
    echo; echo "Nothing to raise."; exit 0
fi

echo
echo "About to re-advertise (each link bounces for a few seconds):"
for i in "${!TODO_IF[@]}"; do
    printf "  %s: ceiling %s -> %s%s\n" \
        "${TODO_IF[$i]}" "$(fmt "${TODO_FROM[$i]}")" "$(fmt "${TODO_TO[$i]}")" \
        "$([ "${TODO_CRIT[$i]}" -eq 1 ] && echo '   <-- carries this session')"
    printf "      adding link modes : %s\n" "${TODO_ADD[$i]}"
    printf "      advertise mask    : %s  (rollback to %s)\n" \
        "${TODO_MASK[$i]}" "${TODO_OLD[$i]}"
done

if [ "$ASSUME_YES" -eq 0 ]; then
    printf "Proceed? [y/N] "
    read -r ans
    case "$ans" in y|Y|yes|YES) ;; *) echo "Aborted."; exit 1 ;; esac
fi

for i in "${!TODO_IF[@]}"; do
    dev="${TODO_IF[$i]}"; new="${TODO_MASK[$i]}"; old="${TODO_OLD[$i]}"
    top="${TODO_TO[$i]}"; was="${TODO_FROM[$i]}"

    log "$dev: CHANGE - adding link modes: ${TODO_ADD[$i]}"
    log "$dev: CHANGE - advertise mask $old -> $new (ceiling $(fmt "$was") -> $(fmt "$top"))"

    if ! "$ETHTOOL" -s "$dev" autoneg on advertise "$new" 2>&1; then
        log "$dev: FAILED - driver rejected mask $new, NO CHANGE APPLIED (still $(fmt "$was"))"
        FAILED+=("$dev: rejected mask, unchanged at $(fmt "$was")")
        continue
    fi

    spd=$(wait_link "$dev" "$LINK_TIMEOUT")
    if [ -n "$spd" ]; then
        if [ "$spd" -gt "$was" ]; then
            log "$dev: APPLIED - link speed $(fmt "$was") -> $(fmt "$spd") (hardware max $(fmt "$top"))"
            CHANGED+=("$dev: $(fmt "$was") -> $(fmt "$spd")  [added ${TODO_ADD[$i]}]")
        else
            log "$dev: APPLIED mask, but link renegotiated at $(fmt "$spd") - speed unchanged from $(fmt "$was")"
            UNCHANGED+=("$dev: still $(fmt "$spd") despite advertising up to $(fmt "$top")")
        fi
    else
        log "$dev: NO LINK after ${LINK_TIMEOUT}s - ROLLING BACK mask $new -> $old"
        "$ETHTOOL" -s "$dev" autoneg on advertise "$old" 2>&1
        spd=$(wait_link "$dev" "$LINK_TIMEOUT")
        if [ -n "$spd" ]; then
            log "$dev: ROLLED BACK - restored to $(fmt "$spd"), no net change"
            FAILED+=("$dev: would not link at $(fmt "$top"), rolled back to $(fmt "$spd")")
        else
            log "$dev: STILL DOWN after rollback - needs manual attention: ethtool -s $dev autoneg on"
            FAILED+=("$dev: DOWN after rollback - manual fix needed")
        fi
    fi
done

echo
echo "=============================================="
echo " Network Max Speed Set - summary"
echo "=============================================="
if [ "${#CHANGED[@]}" -gt 0 ]; then
    echo " Changes applied:"
    for e in "${CHANGED[@]}"; do echo "   $e"; done
else
    echo " Changes applied: none"
fi
[ "${#UNCHANGED[@]}" -gt 0 ] && { echo " No speed gain:"; for e in "${UNCHANGED[@]}"; do echo "   $e"; done; }
[ "${#FAILED[@]}" -gt 0 ]    && { echo " Problems:";      for e in "${FAILED[@]}";    do echo "   $e"; done; }

echo

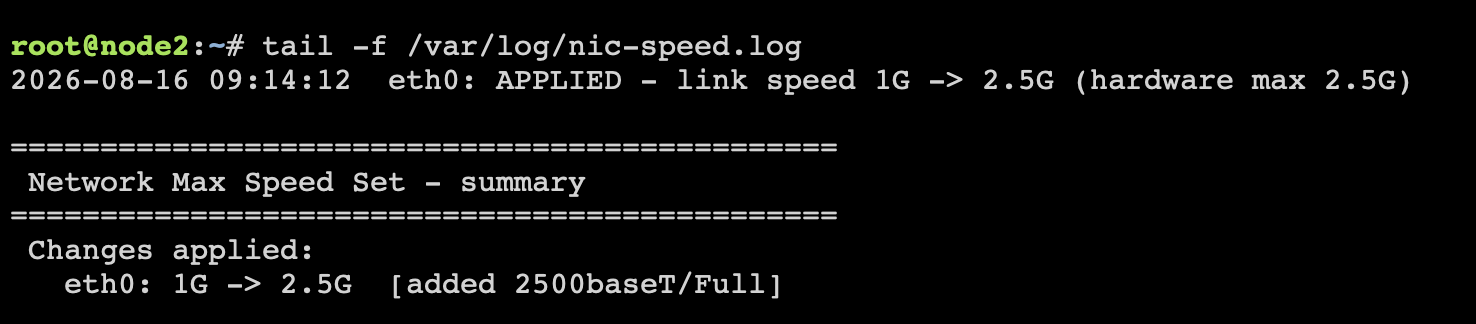

echo "Unraid runs from RAM; this does not survive a reboot."
echo "To persist, add the ethtool lines above to /boot/config/go."
exit 0
